Hydrogen Valves and Manifold - New Products on Display at ACT Expo 2023
Oasis Engineering have been focusing on new Hydrogen options for a while and are delighted to present the new 900 Series of Ball Valves, Cylinder Valves and Trailer Manifold to the market at ACT Expo 2023:
Pi Marked Ball Valves
High flow, Pi marked ball valves suitable for Hydrogen trailers up to 385 bar working pressure. Type tested to ISO23826 for or use with compressed gaseous Hydrogen. Also suitable for CNG, Biogas, Helium, Nitrogen and other gases on enquiry. Range of end connections from 1/4” to 1” nominal. Easy to service, kits readily available. Quarter turn handle. Suitable for 385 bar working pressure trailers. Anti blow-out stem. Manufactured from certified bar stock. Optional Accessories include Lockout system available to prevent accidental operation of valve. Actuated options available.

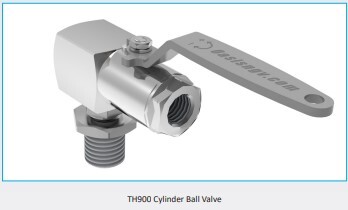

Cylinder Ball Valves
High flow cylinder valves suitable for Hydrogen ground storage up to 385 bar working pressure. Suitable for use with compressed gaseous Hydrogen. Also suitable for CNG, Biogas, Helium, Nitrogen and other gases on enquiry. Available with 25E or UNF18 male cylinder connection. Easy to service, kits readily available. Quarter turn handle. Anti blow-out stem. Includes a live PRD port, PRD not included. Manufactured from certified bar stock. Optional Accessories include Lockout system available to prevent accidental operation of valve.

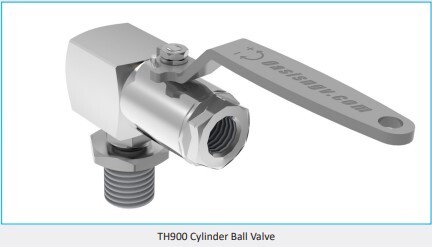

Pi Marked Cylinder Ball Valves
High flow, Pi marked cylinder valves suitable for Hydrogen trailers up to 385 bar working pressure. Suitable for use with compressed gaseous Hydrogen, CNG, Biogas, Helium, Nitrogen and other gases on enquiry. Available with 25E or UNF18 male cylinder connection. Easy to service, kits readily available. Quarter turn handle. Suitable for 385 bar working pressure trailers. Anti blow-out stem. Includes a live PRD port, PRD not included. Manufactured from certified bar stock. Optional Accessories include Lockout system available to prevent accidental operation of valve.

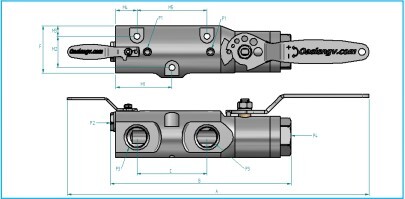

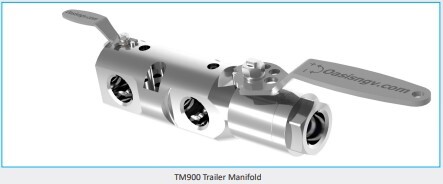

Pi Marked Trailer Manifold
High flow, Pi marked trailer load/unload manifold ball valves suitable for Hydrogen trailers up to 385 bar working pressure. Type tested to ISO23826 for use with compressed gaseous Hydrogen. Also suitable for CNG, Biogas, Helium, Nitrogen and other gases on enquiry. Easy to service, kits readily available. Suitable for 385 bar working pressure trailers. Anti blow-out stem. Quarter-turn handle. Incorporated vent valve. Manufactured from certified bar stock. Can be manufactured to your specifications, contact us for details. Optional Accessories include Lockout system available to prevent accidental operation of valve.
Want to know more about hydrogen? We loved discussing this alternative fuel so come say hello and check out the new products.
Further details:
Location: Hall A, Stall 6967
Anaheim Convention Center, California
Conference dates: May 1st - 4th, 2023
Expo dates: May 2nd – 4th, 2023
